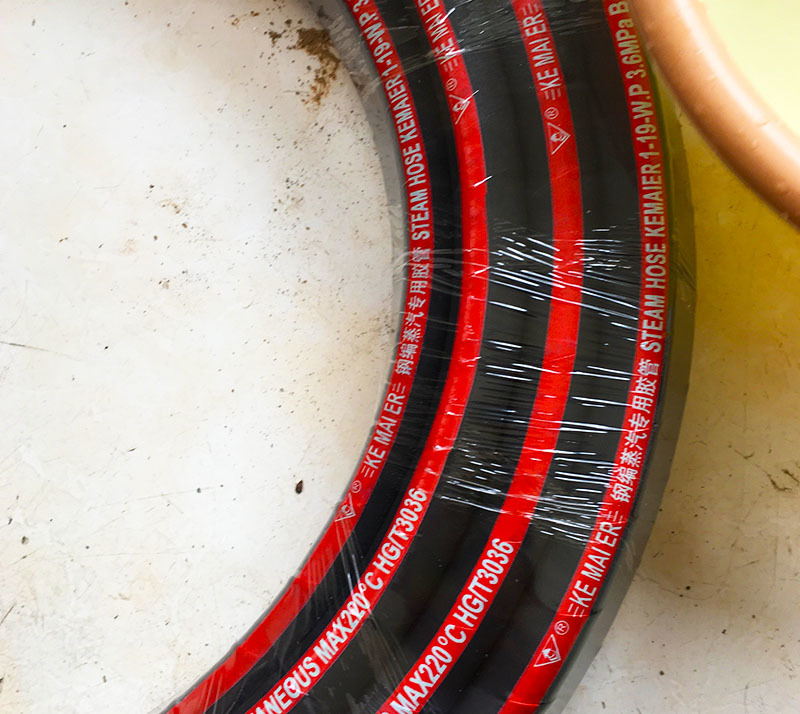

Steam hose

The inner rubber layer is made of EPDM-based rubber compounds, with high temperature resistance and thermal aging resistance; the reinforcing layer is wrapped with multi-layer cord, which has strong adhesion between layers and high pressure resistance; the outer rubber is made of EPDM-based rubber compounds, which has excellent temperature resistance and aging resistance.

key word:

Steam hose

Category:

Steam hose

Hotline:

+86 15901470995

Mail:hongye@kemaierhose.com

Feedback

Describe

Scope of application: Applicable for high-temperature cleaning equipment or conveying saturated steam or superheated water in various chemical plants.
Operating temperature: -30℃~150℃ (continuous) and ≤180℃ (intermittent).
Structure: The inner rubber layer is made of EPDM-based rubber compounds, with high temperature resistance and thermal aging resistance; the reinforcing layer is wrapped with multi-layer cord, which has strong adhesion between layers and high pressure resistance; the outer rubber is made of EPDM-based rubber compounds, which has excellent temperature resistance and aging resistance.
Color/texture: cloth texture; wrapped by waterproof nylon fabrics through pressurized winding, featuring higher density, tighter fitting between layers, and better integrity of the hose body compared to plain rubber hose.

Inner diameter mm	Inner diameter inch	Working pressure		Hose length
13	1/2	20bar	Working pressure is customizable	20 M/piece for standard	Customization is supported for length requirements≤20 M
16	5/8
19	3/4
22	7/8
25	1	16bar
28	1-1/16
30	1-3/16
32	1-1/4
35	1-3/8	10bar
38	1-1/2
40	1-9/16
42	1-5/8
45	1-3/4
48	1-7/8
51	2
57	2-1/4
60	2-3/8	8bar
64	2-1/2
76	3
89	3-1/2
102	4
102-800	Please contact our sales department if you need a larger diameter.
