Material delivery hose

The inner rubber layer is made of BR rubber-based compounded synthetic rubber, with wear-resistant and corrosion-resistant design; the reinforcement layer is made of multi-layer dipped polyester cloth + spiral steel wire winding, with strong interlayer adhesion and high pressure resistance; the outer rubber is made of NR rubber-based compounded synthetic rubber with excellent aging resistance.

key word:

Material delivery hose

Category:

Material delivery hose

Hotline:

+86 15901470995

Mail:hongye@kemaierhose.com

Feedback

Describe

Scope of application: Applicable for transporting sand, mud, corundum, cement and other solid materials in aluminum plants, steel plants, cement plants, shipbuilding plants, coal mines, iron mines and other industries or mines.
Operating temperature: -30℃~100℃ (continuous) and ≤120℃ (intermittent).

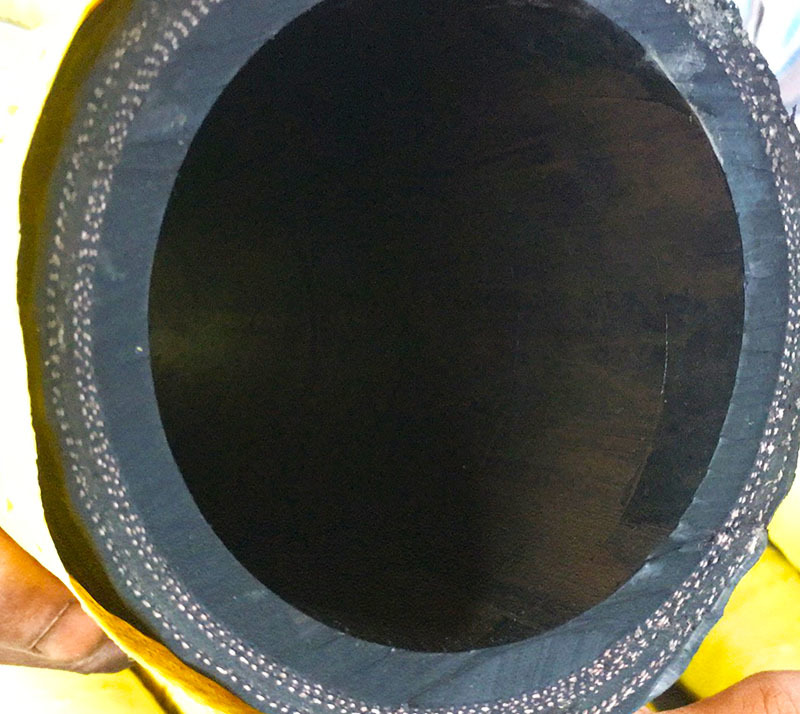

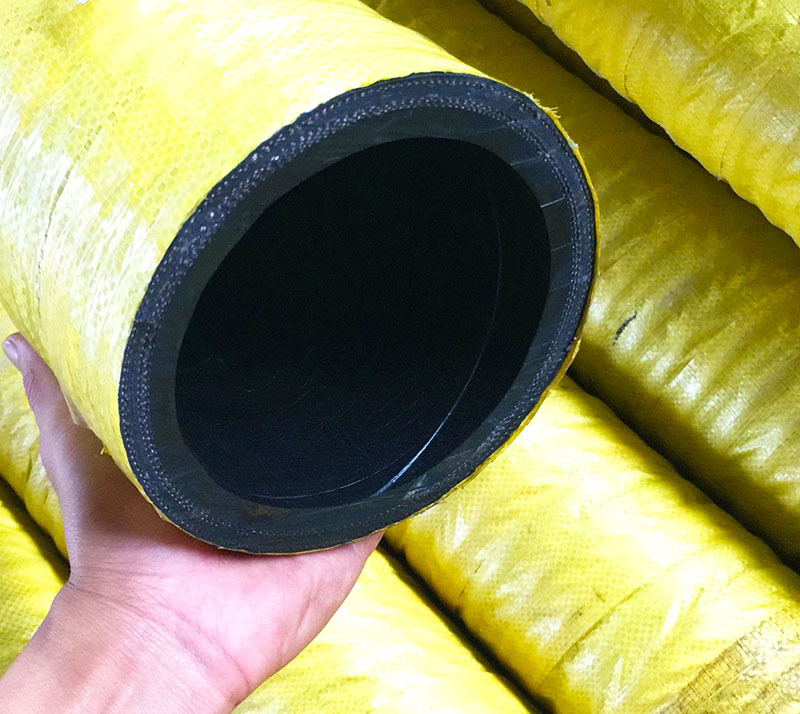

Structure: The inner rubber layer is made of BR-based rubber compounds, with wear-resistant and corrosion-resistant design; the reinforcing layer is wrapped with multi-layer dipped polyester cloth+spiral wire, which has strong adhesion between layers and high pressure resistance; the outer rubber is made of NR-based rubber compounds, which has excellent aging resistance.
Color/texture: corrugated or cloth texture, wrapped by waterproof nylon fabrics+nylon rope through pressurized winding, featuring higher density, tighter fitting between layers, and better integrity of the hose body compared to plain rubber hose.

Inner diameter mm	Inner diameter inch	Working pressure		Hose length
13	1/2	20bar	Working pressure is customizable	20 M/piece for standard	Customization is supported for length requirements≤20 M
16	5/8
19	3/4
22	7/8
25	1	15bar
28	1-1/16	15bar
30	1-3/16	10bar
32	1-1/4
35	1-3/8
38	1-1/2
40	1-9/16
42	1-5/8
45	1-3/4
48	1-7/8
51	2
57	2-1/4
60	2-3/8	8bar
64	2-1/2
76	3
89	3-1/2
102	4
102-800	Please contact our sales department if you need a larger diameter.
