Carbon free rubber hose

The inner rubber layer is made of NR rubber-based compounded synthetic rubber, with a special carbon-free insulation design; the reinforcement layer is wound with multi-layer dipped polyester cloth, which has strong interlayer adhesion and high pressure resistance; the outer rubber is EPDM rubber The main compounding synthetic rubber has excellent aging resistance.

key word:

Carbon free rubber hose

Category:

Carbon free rubber hose

Hotline:

+86 15901470995

Mail:hongye@kemaierhose.com

Feedback

Describe

Scope of application: Applicable for water-cooled cable systems with high voltage resistance requirements in metallurgical sectors like aluminum and steel manufacturers.
Operating temperature: -30℃~120℃ (continuous) and ≤150℃ (intermittent).

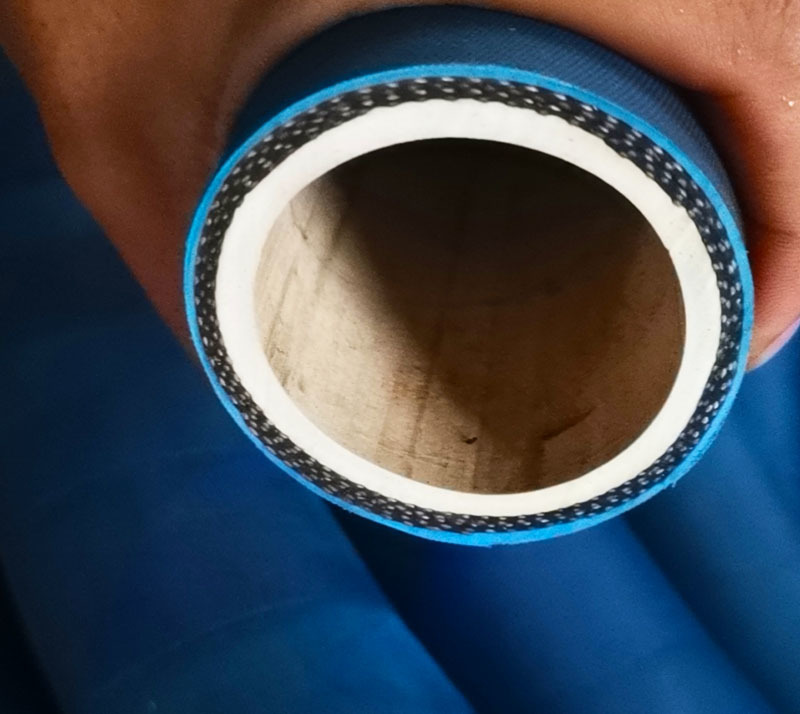

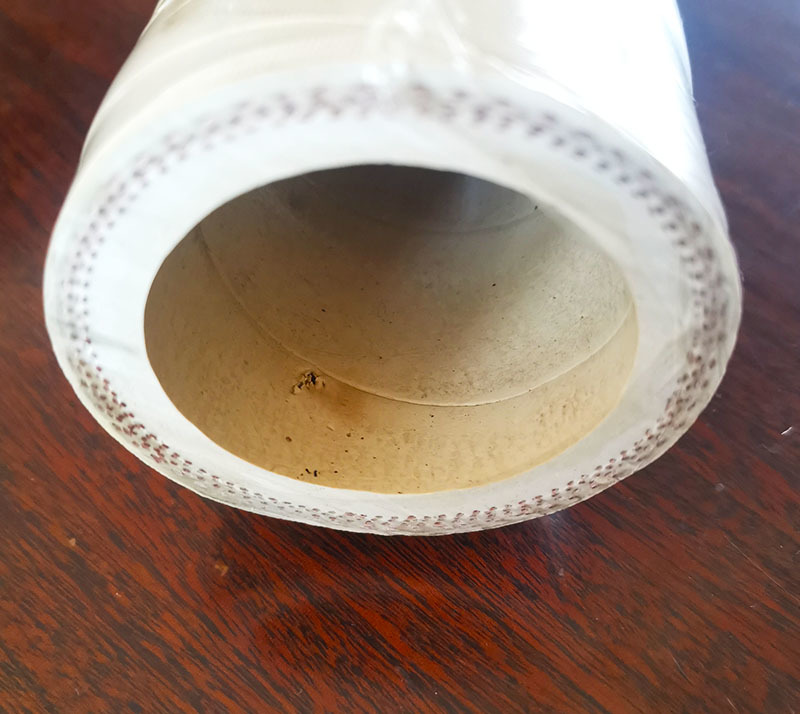

Structure: The inner rubber layer is made of NR-based rubber compounds, with carbon-free insulation design; the reinforcing layer is wrapped with multi-layer dipped polyester cloth, which has strong adhesion between layers and high pressure resistance; the outer rubber is made of EPDM-based rubber compounds, which has excellent aging resistance.
Color/texture: White, green, and blue cloth texture; color can be customized. Wrapped by waterproof nylon fabrics, featuring higher density, tighter fitting between layers, and better integrity of the hose body compared to plain rubber hose.

Inner diameter mm	Inner diameter inch	Working pressure		Hose length
13	1/2	20bar	Working pressure is customizable	20 M/piece for standard	Customization is supported for length requirements≤20 M
16	5/8
19	3/4
22	7/8
25	1	15bar
28	1-1/16	15bar
30	1-3/16	10bar
32	1-1/4
35	1-3/8
38	1-1/2
40	1-9/16
42	1-5/8
45	1-3/4
48	1-7/8
51	2
57	2-1/4
60	2-3/8	8bar
64	2-1/2
76	3
89	3-1/2
102	4
102-800	Please contact our sales department if you need a larger diameter.
