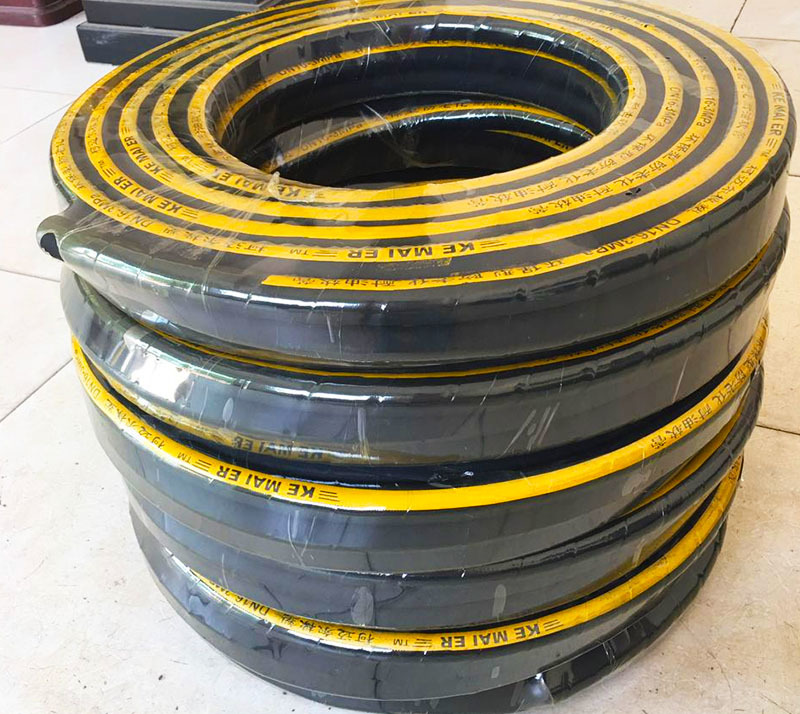

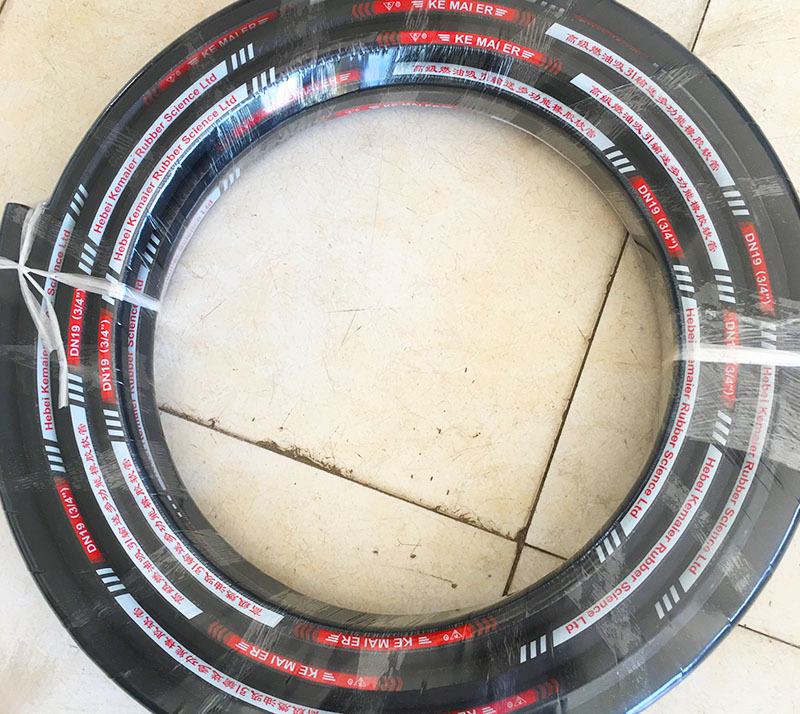

Oil pipe

The inner rubber layer is made of NBR-based rubber compounds, with excellent oil resistance; the reinforcing layer is wrapped with multi-layer dipped polyester cloth, which has strong adhesion between layers and high pressure resistance; the outer rubber is made of CR-based rubber compounds, which has excellent oil resistance and aging resistance.

key word:

Oil pipe

Category:

Tubing

Hotline:

+86 15901470995

Mail:hongye@kemaierhose.com

Feedback

Describe

Scope of application: Transporting gasoline, diesel, kerosene, crude oil, engine oil, hydraulic oil, lubricating oil and other mineral oil under normal temperature.
Operating temperature: -30℃~100℃ (continuous) and ≤120℃ (intermittent).
Structure: The inner rubber layer is made of NBR-based rubber compounds, with excellent oil resistance; the reinforcing layer is wrapped with multi-layer dipped polyester cloth, which has strong adhesion between layers and high pressure resistance; the outer rubber is made of CR-based rubber compounds, which has excellent oil resistance and aging resistance.
Color/texture: cloth texture; wrapped by waterproof nylon fabrics through pressurized winding, featuring higher density, tighter fitting between layers, and better integrity of the hose body compared to plain rubber hose.

Inner diameter mm	Inner diameter inch	Working pressure		Hose length
13	1/2	20bar	Working pressure is customizable	20 M/piece for standard	Customization is supported for length requirements≤20 M
16	5/8
19	3/4
22	7/8
25	1	15bar
28	1-1/16	15bar
30	1-3/16	10bar
32	1-1/4
35	1-3/8
38	1-1/2
40	1-9/16
42	1-5/8
45	1-3/4
48	1-7/8
51	2
57	2-1/4
60	2-3/8	8bar
64	2-1/2
76	3
89	3-1/2
102	4
102-800	Please contact our sales department if you need a larger diameter.
